P6 Advertisement LED Display IP65 HD Video Screen, Huge LED Video Wall
Shenzhen X-Media Electronics Co.,Ltd is established in 2012. we are a leading manufacturer and provider of technical solution. We own our outstanding research and develop department and after-sales service workers, the separately design ability.Our product mainly included the RGB led display,outdoor full color led display,indoor full color led display, advertising led display,stage led display,led billboard,rental led display,stadium led display,led display module,car led sign display,hanging led display,mobile truck led display
About our led displays
1. Wide application field & short ROI time:
commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen
air port LED display screen, telecommunication LED display screen system for information showing and instruction .
2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system
4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.
Application
It can be used on the shopping mall,bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi, and so on. we adopt many methods and very good after-sales service to sell our product all over the world. Whenever and wherever we are , we always take the principle that professional makes good quality, provide the perfect product and service for our customer.
Technology parameter
| 1, Item Name | p6 outdoor waterproof advertising led display with high definition image |
| 2, pixel tube: | pixel pitch:6mm; primary colors: pure red+ pure green +pure blue; color composing:3 in 1 or 1R1G1B Density 62500dots/sq m; SMD3528 |
| 3, unit box | module size:192mm×196mm; Module resolution:32*32 cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm; |
| 4, whole screen: | the optimum viewing angel :horizontal 110°, vertical 50° viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC MBI5024 |
| 5, operating voltage | AC220V±10% or 110V±10% ,average consumption:500 W/sq m max consumption:≤650 W/ sq m. |
| 6, main parameter | 1) driving mode: 1/8 scan 2) refreshing rate:≥400Hz/s 3) frame frequency:≥60Hz/s 4) gray scale/color:≥16.7Mcolors(Synchronized) 5) manage gray:≥72bit 6) brightness:≥7000cd/sq m 7) color temperature condition:3500K~9500K,be adjustable 8) adjusting style of brightness: hand movement/auto 9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable. 10) average trouble-free time:≥5000hours 11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm 12) switch power loading:5V/40A 13) display mode of computer:1024×768 |

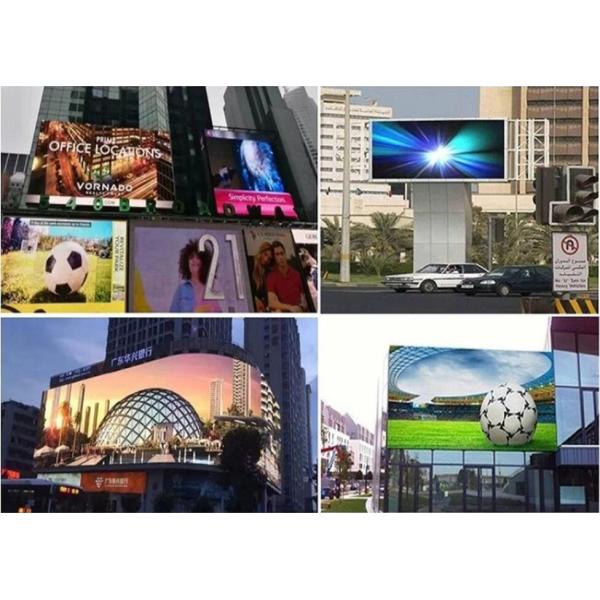

Advertising LED video wall case
Shipping any package:
In our company all goods we can use our own freight forwarding, the cost can be low; But is you want use your own,
it's ok. So normally we use air and sea, the packages are wooden and flight cases.
The answers which you may care:
1. We accept T/T and payment;
2. The delivery time is about 8-10 working days after receiving your down payment;
3. Five years warranty for free;
4. We will send you an instruction manual before using,if still confused can contact us;
Buy guides:
In order to save you time avoid no necessary troubles ,please follow the steps bellowing :
1, Dimension (Width and Height)
2, Location of installation. (picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
